6W / 10W lasers
2. Spare no effort to develop and build products. The earliest patented manufacturer of double-layer chassis structure in China, can effectively prevent oil fume and improve heat dissipation efficiency, thereby ensuring that the laser light can be used for a long time.
3. The mature product design and production process ensure the uniform brightness, uniform color and uniform dimming characteristics, which can meet everyone's experience standards.
6W: R635-1.6W/G525-1.4W/B450-3W
10W: R635-2.5W/G525-3W/B450-4.5W
Rated Voltage: AC100~240V 50/60Hz;250W
Scanner: 30kpps fast scanning system, scan angle:max±30°; Input signal: ±5V;
Modulation: analog
Beam diameter and divergence: 6*6.5mm; 1.5mrad
Control mode: sound, auto, master-slave, DMX512(5/17/18/27/52CH), SD card, ILDA
Demonstration effect: built-in 160 pattern, SD card unlimited storage.

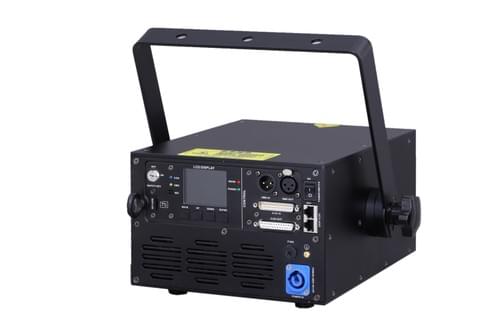

Control Interface: 3 pin DMX512, 25DB ILDA, EASY ILDA ,SD card
DMX effect: DMX built-in 160 patterns, SD card unlimited storage, DMX can choose the scene or SD card laser show
Control technology: ①RDM data bidirectional transmission ② SD card online upgrade ③temperature control system DMX512 upgrade
Operating requirement: dry, less dust, 0~35℃(environmental temperature), will reduce the attenuation of the diode and extend the life of the light.

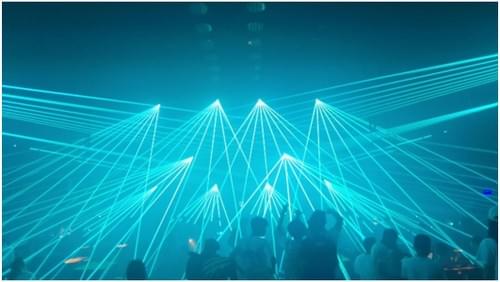

Application: disco, club, medium indoor venue, theatre, etc.

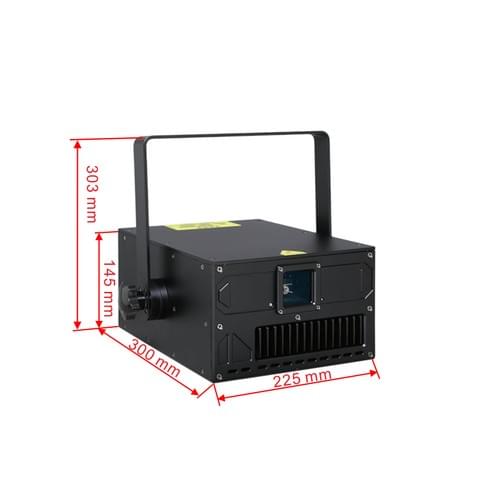

Size(2 in1): 46* 36 *52cm
N.W./G.W.: 16/21kg
